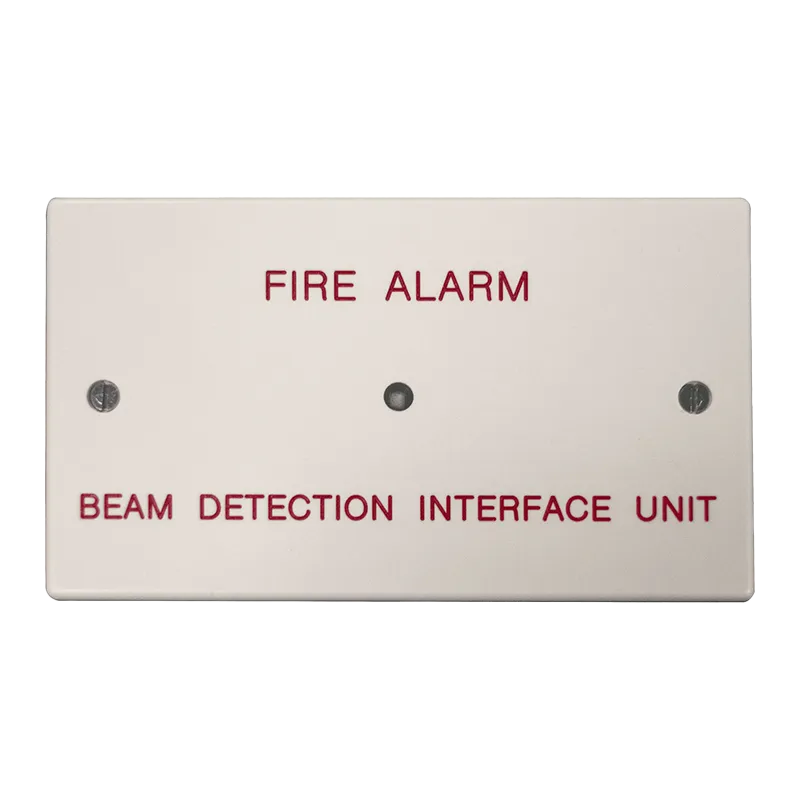

The Protec 6000/BEAM/IF is an interface unit which allows the 6000 series intelligent addressable loop to interface to conventional Firebeam beam devices.
This is ideally suited to interface ancillary conventional devices such as beam detectors and linear heat detection with Protec intelligent addressable fire alarm systems. The 6000/BEAM/IF is loop powered and does not require an external power supply. The detection circuit end of line is selectable using the on-board DIL switch and can be programmed to resistive or capacitive. The power circuit has a selectable 25mA or 50mA maximum current drive capability.
The interface has an inbuilt loop short circuit isolator fitted as standard.
SKU: 6000/BEAM/IF
