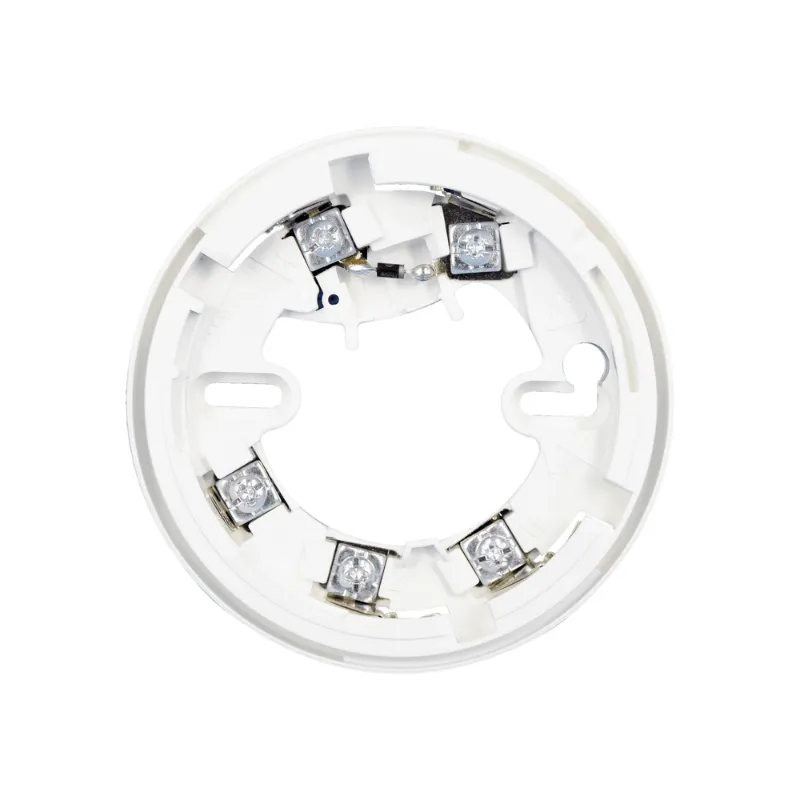

The 3000PLUS/BASE is Protec’s standard surface mount detector base for use with the Protec 3000PLUS conventional detector range.
The Protec 3000PLUS standard base is designed for use with the Protec 3000PLUS series fire detection devices. It allows the detectors to be mounted directly to any flat surface, or BESA box. Provision is also made for surface mount trunking entry via side breakouts.
The base features robust wiring terminals with captive clamping washers to ensure secure wiring termination. Terminals are provided inside the moulding for zone connections and the termination of cable screening. Provision is also made for the connection of an optional remote LED if required.
Zone continuity is maintained by a low forward Voltage diode on the 3000PLUS/BASE.
| Environment | -10°C to +50°C, 95% R.H. non condensing or icing) |
| Ingress Protection | IP32 |
| Weight (excluding base) | 56g |
| Voltage Range | 30V maximum |
| Mounting | Surface or BESA box |
| Material | White polycabonate V0 rated |
| Application | Indoor Installation |
| EMC | CE Marked (EEC89/336) |
| Dimensions (mm) | 98.62ø x 18.37H |
SKU: 3000PLUS/BASE/X
