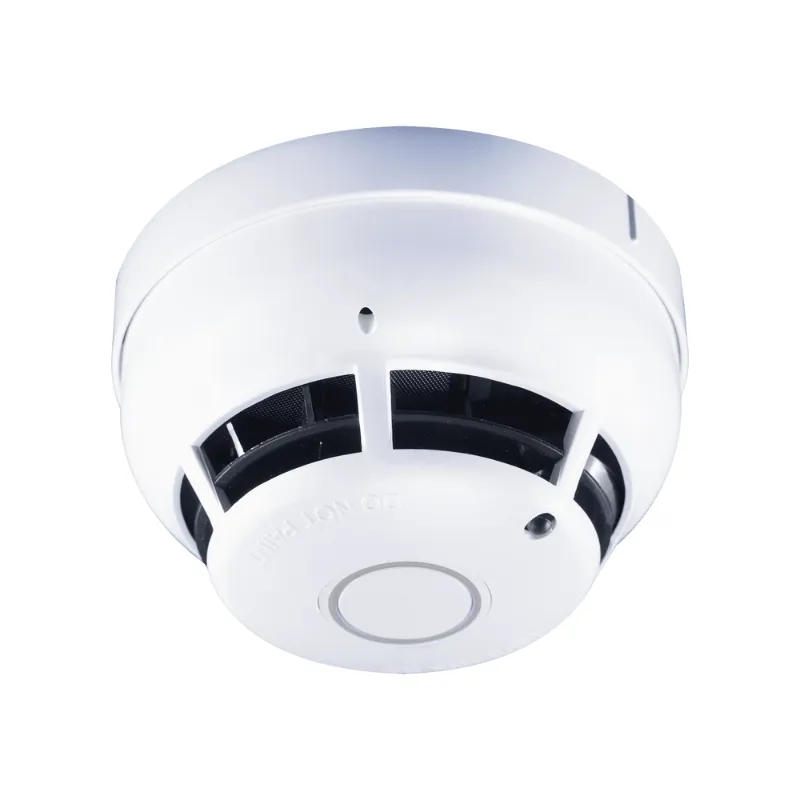

The 3000PLUS/OP is Protec’s conventional, point-type, optical smoke detector. Ideal for offices, shops, corridors, ceiling voids and computer rooms.
The Protec 3000PLUS series of fire detectors, form a range of elegantly designed, aesthetic, low profile detectors which blend unobtrusively into modern working environments. All detectors incorporate a discreet anti tamper security latch and latching ‘FIRE’ LED indicator with the facility to activate a remote indicator unit. All detectors are interchangeable with a variety of base options.
The low profile conventional optical smoke detector provides efficient reliable detection utilising the light scatter sensing principle with rapid response to a fire signal. The detector incorporates alarm verification functions, designed to give maximum sensitivity to smoke detection, with high resistance to false alarms due to high air velocity, insects, dust and R.F. interference.
Providing early warning of a fire condition particularly for slow burning fires, the 3000PLUS/OP is an ideal general purposesmoke detector for offices, shops, corridors, factories, warehouses & computer rooms.
Fully approved to NZS4512.
BASE Options
3000PLUS/BASE
– Low profile common mounting base
3000PLUS/FFBASE
– Fast fixing semi-recessed base
Note – base options above are included in the product approvals.
| Environment | -10°C to 55°C, 95% R.H (non condensation or icing) |
| Ingress Protection | IP21C |
| Weight (excluding base) | 98g |
| Operating Voltage | 16-30V dc |
| Quiescent Current | 25μA at 24V dc |
| Alarm Current | 30mA Maximum (must be limited by control panel) |
| Detection Principle | Light scatter principle |
| Indication | Red alarm LED (360° viewing angle) |
| Dimensions (mm) | 98.60ø x 56.50H |
| Relevant Standard | EN54 & AS7240 Part 7 |
SKU 3000PLUS/OP
