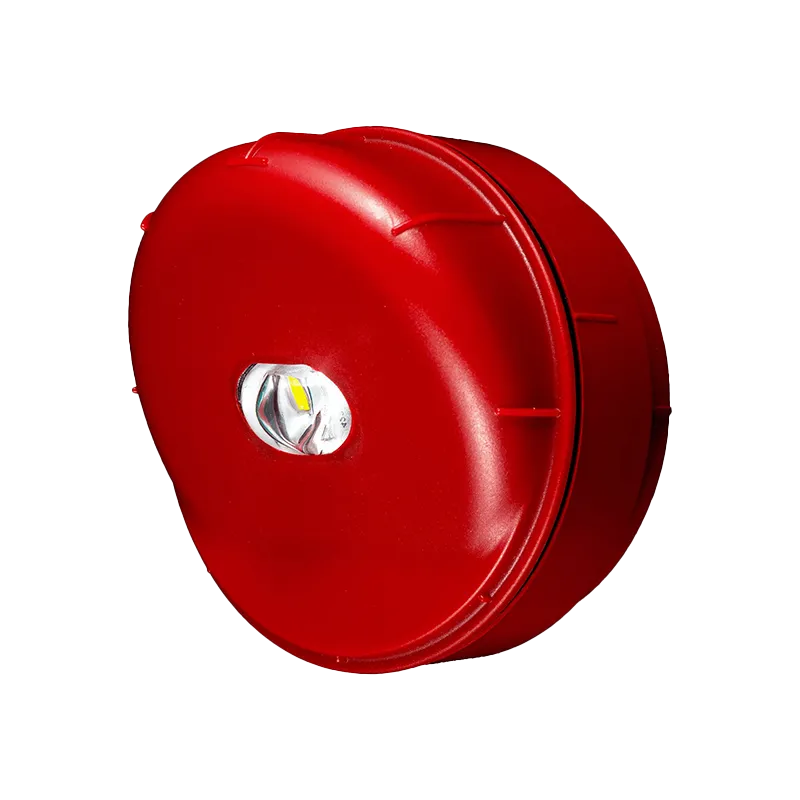

The 3000/VAD/W/RED is Protec’s 24 Volt wall-mounted, red-bodied VAD for use with conventional fire alarm sounder circuits.
The Protec 3000/VAD/W is a conventional wall-mounted high-intensity Visual Alarm Device (VAD).
The device is categorised for installation at a height of up to 2.4m and room coverage of 7.5m x 7.5m (W-2.4-7.5).
The product has a unique lens that distributes the light in a cuboid shape to achieve the required illumination of 0.4lux over the entire coverage area per EN54-23.
The design uses LED technology for long life, reliability and low power consumption.
The 3000/VAD/W has a Type B (IP33C) + IP65 rating making the product suitable for mounting internally or externally.
In compliance with DDA legislation, this high-intensity led beacon warns those with hearing impairments or in noisy environments.
This device is available in white or red housing with a white flash rate of 1 or 0.5Hz.
| Environment | -10 to 50ºC, 95% R.H (non-condensation or icing) |
| Ingress Protection | Type B (IP33C) + IP65 |
| Weight (excluding base) | 123g |
| Voltage | 18 – 28V |
| Mounting Height (x) | 2.4 metres |
| Coverage (y) | 7.5 metres |
| Coverage Volume Code | W-2.4-7.5 |
| Flash Rate | 1 to 0.5Hz |
| Mounting | Wall |
| Dimensions (mm) | Ø96 x 68(D) |
| Relevant Standard | EN54 Part 23 |
SKU: 3000/VAD/W/RED
